GitHub PullRequest widget

Author: Julian Kleinhans · Blog: http://blog.kj187.de

Dashing-JS is a NodeJS port of Dashing, an Sinatra based framework that lets you build beautiful dashboards.

The GitHub PullRequest widget is a widget which provides a list of configured repositories and the amount of current open Pull Requests.

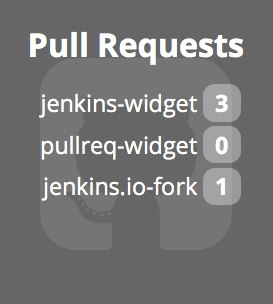

Preview

GitHub Pull Request widget

Example Dashboard

Example

Requirements

Dashing-JS

$ npm install -g dashing-js

Widget dependencies

$ npm install github
$ npm install cron

Installation

$ dashing-js install https://github.com/kj187/dashing-github_pullrequests/archive/master.zip

Create a new directory config on your root directory. Move the widgets/github_pullrequests/config.github_pullrequests.sample.js file to this directory and rename it to config.github_pullrequests.js.

assets/
  ...
config/
  config.github_pullrequests.js
  ...
dashboards/
  ...
jobs/
  ...
...

Usage

To include the widget on your dashboard, add the following snippet to the dashboard layout file:

<li data-row="1" data-col="1" data-sizex="1" data-sizey="1" style="background-color:#666">
  <div data-title="Pull Requests" data-id="github_pullrequests" data-view="GithubPullrequests" class="widget"></div>
  <i class="fa fa-github-square icon-background"></i>
</li>

Or if you use Jade as your favorite template engine

li(data-row='1', data-col='1', data-sizex='1', data-sizey='1', style='background-color:#666')
  div(data-id='github_pullrequests', data-view='GithubPullrequests', data-title='Pull Requests', class='widget')
  i(class='fa fa-github-square icon-background')

Settings

module.exports = {

    eventName: 'github_pullrequests',

    client: {
        userAgent: 'PullRequest Dashboard',
        debug: false,
        protocol: 'https',
        host: 'api.github.com',
        auth: {
            token: 'xxx'
        },
    },

    repositories: [
        {
            cronInterval: '1 * * * * *',
            id: 'github-repository-name',
            label: 'repository-label',
            owner: 'kj187',
            state: 'open'
        },
        {
            cronInterval: '1 * * * * *',
            id: 'github-repository-name',
            label: 'repository-label2',
            owner: 'kj187',
            state: 'open'
        }
    ]

}

Global settings

Setting	Example	Description
eventName	github_pullrequests	Event name, must be the same as the `data-id` attribute

Client settings

Setting	Example	Description
userAgent	PullRequest Dashboard	GitHub is happy with an unique user agent
debug	false	Debug mode
protocol	https	Http protocol of GitHub
host	api.github.com	Host of GitHub
auth.token	xxx	Personal GitHub API token. Blogpost

Repositories settings

You can define multiple repositories

Setting	Example	Description
cronInterval	1 * * * * *	Click here for available cron patterns
id	github-repository-name	Must be the GitHub repository name
label	repository-label	The label of the repository which is displayed in the widget
owner	kj187	The owner of the repository
state	open	The state of pull requests, could be open or closed

Dashing-GitHub PullRequests
